SAILOR 6081 Power Supply incl. Charger
SAILOR 6081 Power Supply incl. Charger
Cobham Sailor
SKU:406081A-00501
Delivery status: On order
Couldn't load pickup availability
Prices in EUR. Worldwide delivery, also to vessels. Payment, delivery and returns →
- Description
Share

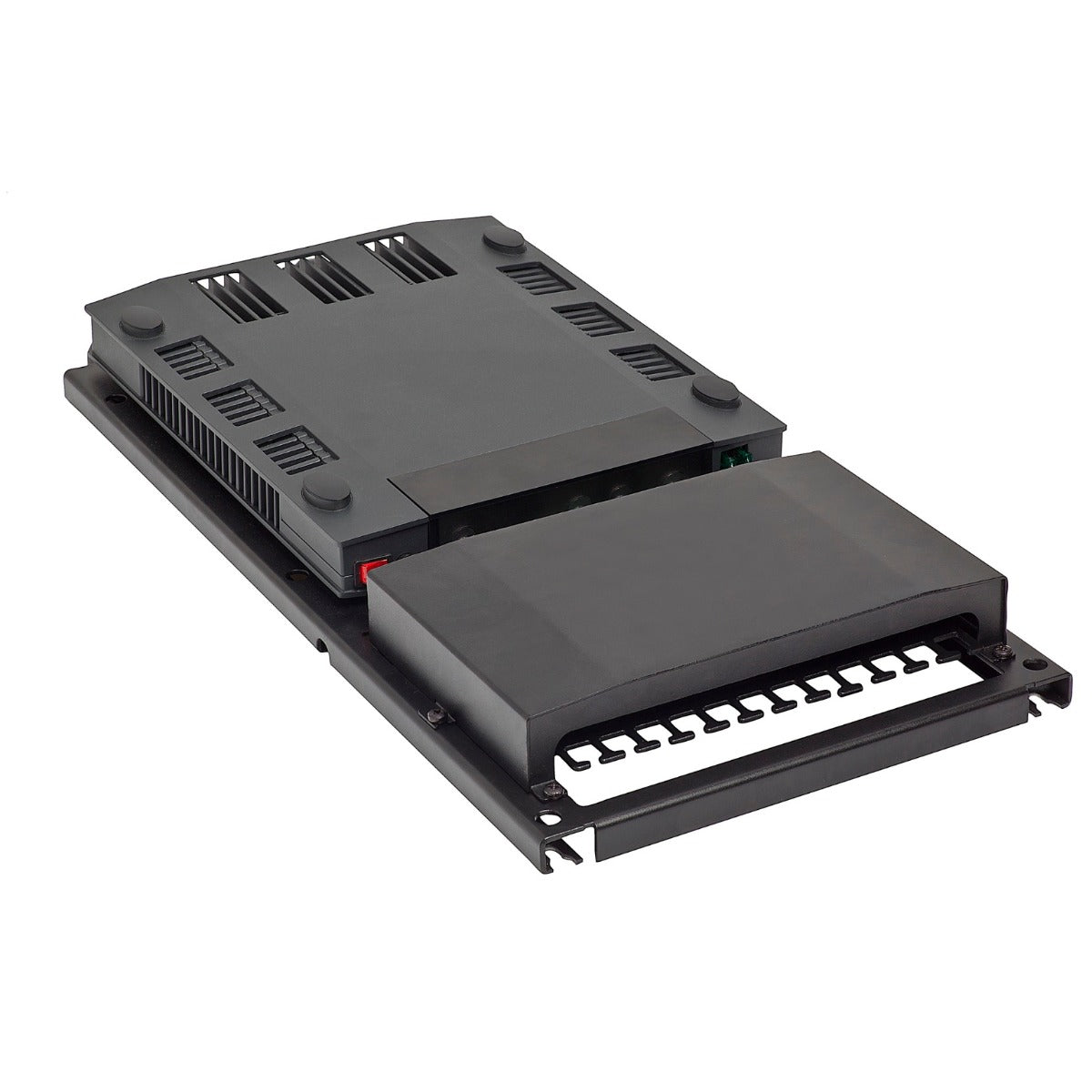

Thrane & Thrane 6081 Power Supply Unit and Charger provides DC power at five DC power outlets (all separately fused) and a 15 V DC power outlet for SAILOR 3027 mini-C Transceiver. It also charges automatically a connected battery.
If the AC power fails the power supply delivers DC power from the connected battery. You can access control and monitoring data via the Ethernet interface. There are relay outputs for AC outage and battery voltage alarm. The power supply provides up to 1480 W in total.
Depending on the output power needed, the Power Supply Unit and Charger includes up to four SAILOR 6080 units and one connector panel. The SAILOR 6081 can be upgraded on site to more output power by adding up to three SAILOR 6080 units.
- Output voltage according to battery requirements (range: 24 — 31.2 V)
- 15 V DC output for SAILOR 3027 Terminal
- DC connectors, 2x10A, 2x20A and 1x50A
- Up to 1480 W peak output power
- AC input (100-240 VAC operating) with fuse (6.3 A) with Power Factor Correction
- Automatic detection of input voltage range
- AC alarm and battery voltage alarm
- Ethernet connector for monitoring and control information
- Battery charging function
- Short circuit protection
- Over-temperature protection (shutdown with automatic restart)
- Switch over to battery power in case of AC supply failure
- No forced cooling required
- Link to control up to 8 Power Supply Unit and Charger units connected to the same battery
- Upgrade on site by service personnel
- IP 32 for internal high voltage areas (>42 V), IP 22 in other areas when vertically mounted (wall) and connector panel is facing down
- Approval and certification: IEC 60945 Maritime approval, Wheelmark
