OBSCAPE Radar Wave Gauge
OBSCAPE Radar Wave Gauge
OBSCAPE
SKU:
Delivery status: On order
Couldn't load pickup availability
Prices in EUR. Worldwide delivery, also to vessels. Payment, delivery and returns →

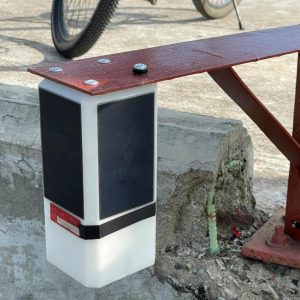

The Radar Wave Gauge is quick and easy to set-up and install – easily attach it to any structure with the provided brackets, power up and start logging data.
- Description
The Radar Wave Gauge is quick and easy to set-up and install – easily attach it to any structure with the provided brackets, power up and start logging data.
Share

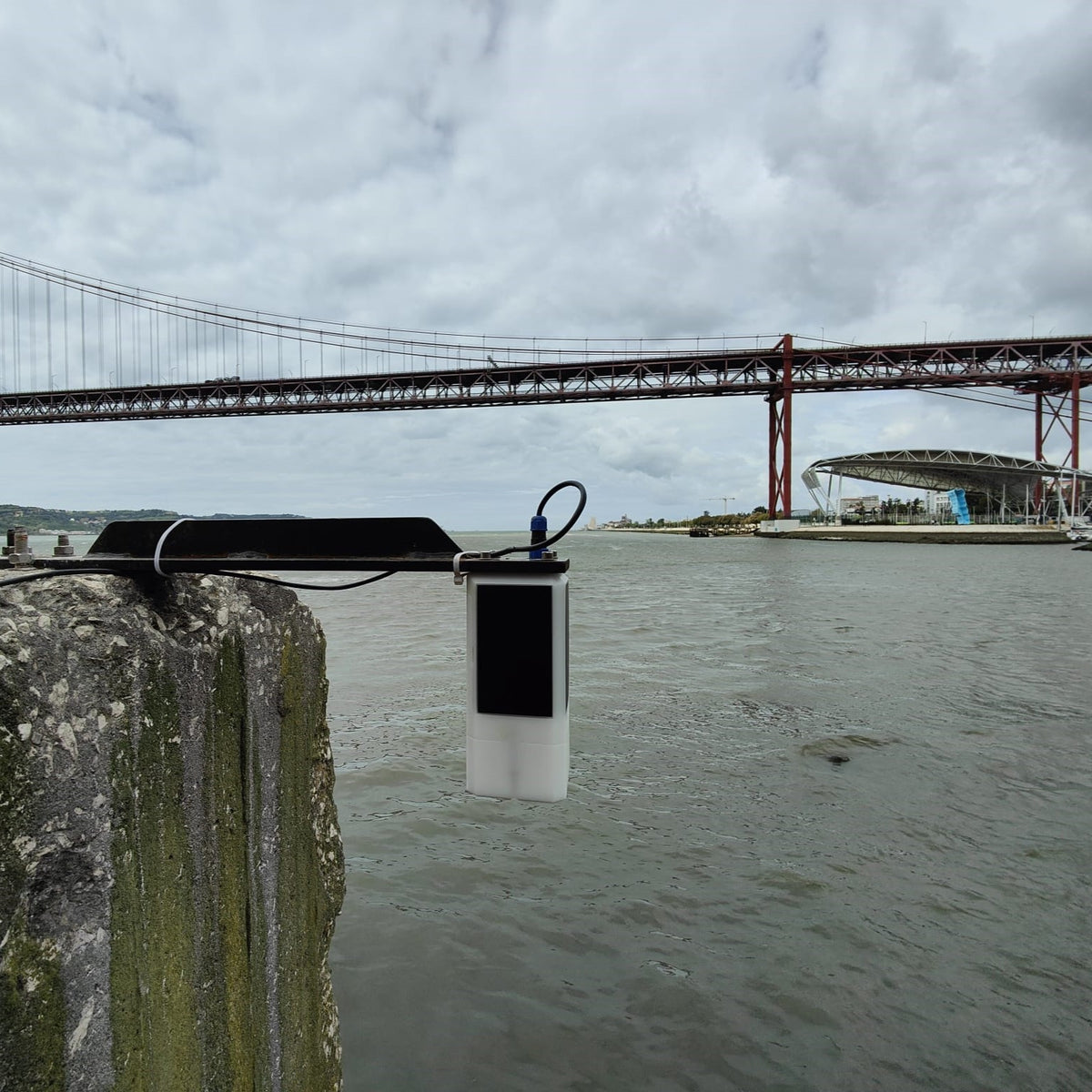

The Radar Wave Gauge offers an innovative and precise solution for real-time wave measurements. Equipped with a millimetre-accurate, industry leading radar sensor, it measures water surface elevation directly, bypassing the limitations of pressure-based methods. Its impressive 40-meter range ensures reliable performance, even under extreme water level variations. With no submerged components, the Radar Wave Gauge eliminates the need for costly and labor-intensive underwater installations. Designed for versatility, it can be easily mounted on fixed structures such as platforms, piers, jetties, poles, or bridge decks, making it a practical and efficient choice for wave monitoring across various applications.
- Solar powered - requires additional power
- 195 mm diameter x 87 mm height
- Weight - 2 kgs
- Cellular data transfer, SATCOM optional
- Bulk wave parameters
- Sensor - InnoSenT iSYS-6030
