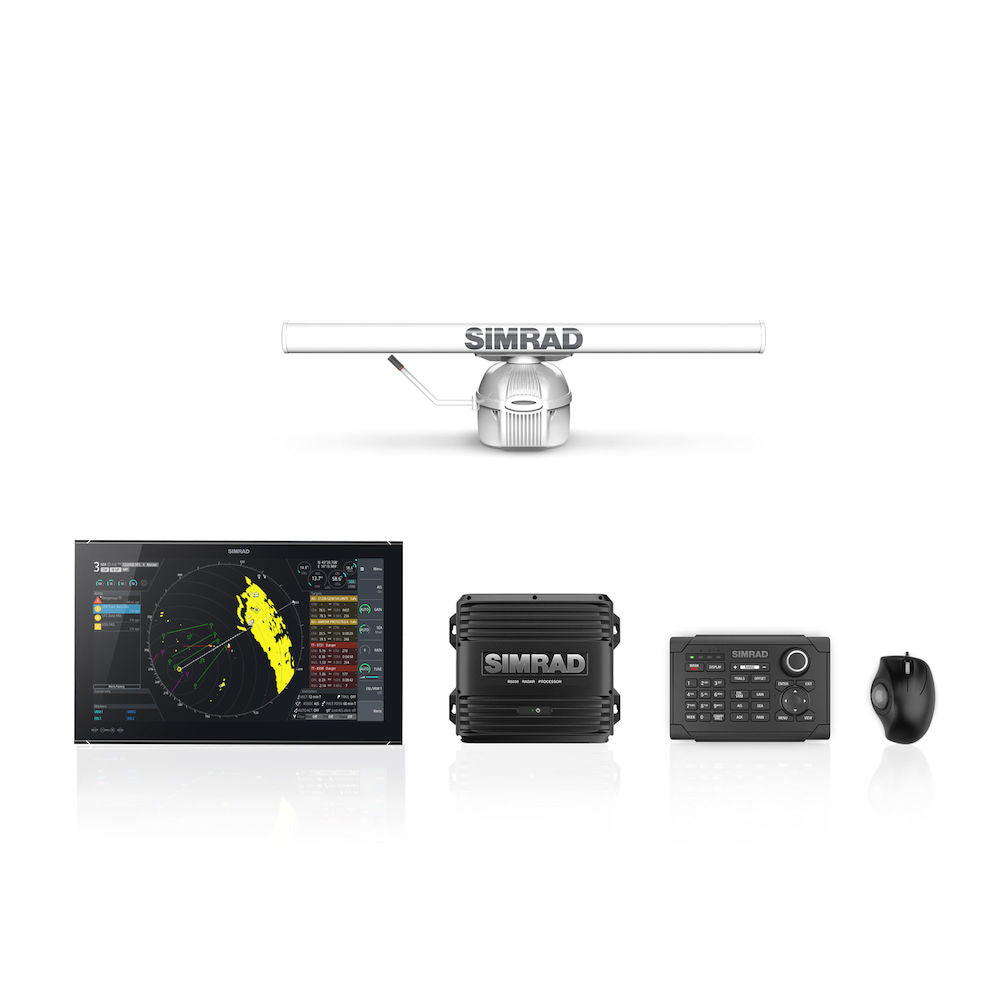

R5024 12U/6X 12kW 6ft X-Band Radar for CAT2
R5024 12U/6X 12kW 6ft X-Band Radar for CAT2
Simrad
SKU:000-14618-001
X-Band radar delivers high-resolution coverage with optimal target separation. This complete system meets type approval standards for use aboard CAT 2 SOLAS vessels, including high speed craft, and includes a 6-foot open array antenna with 12 kilowatt up-mast transceiver. The up-mast design supports easy and cost-effective installation, with just two thin cables between the antenna and the rest of the system. Cable runs of up to 65 metres are supported, and a digital connection between the transceiver and control station ensures a crystal clear picture.
- Description
X-Band radar delivers high-resolution coverage with optimal target separation. This complete system meets type approval standards for use aboard CAT 2 SOLAS vessels, including high speed craft, and includes a 6-foot open array antenna with 12 kilowatt up-mast transceiver. The up-mast design supports easy and cost-effective installation, with just two thin cables between the antenna and the rest of the system. Cable runs of up to 65 metres are supported, and a digital connection between the transceiver and control station ensures a crystal clear picture.
Product available
Status: On Order
Couldn't load pickup availability
Please note: Where product price is not shown, you can request for quote to receive information on availability and pricing. Product price will appear €0,00 in cart and checkout. A quote is non-binding.
Share
Easy to Learn and Operate
Our R5000 systems are designed for ease of use, and feature a modern interface with intuitive keypad and trackball controls. The R5024 includes a 24-inch widescreen display to give operators constant access to key information, alerts, and settings without distracting from the central PPI. The same interface is used across our complete series of X-Band and S-Band solutions, offering a consistent experience for operators of multi-radar systems.
Simple and Flexible Installation
This modular system is based on the R5000 radar processor: a high performance ‘black-box’ system that connects directly to the transceiver via a thin and easy-to-route Ethernet cable. The R5000’s compact design enables easy installation, even aboard smaller vessels. Multiple R5000 processors can be networked together to create multi-radar systems, including up to four radar transceivers, four individual control stations, and additional ‘clone’ stations. In a fully networked system any station can control any connected radar system, offering both flexibility and redundancy.
- X-Band radar offers high resolution and optimal target separation
- 6-foot open array antenna with 12 kW up-mast transceiver
- Meets type-approval standards for use aboard CAT 2 (H) SOLAS vessels
- 24-inch optically bonded widescreen display
- Modern user interface with intuitive keypad and trackball controls
- Modular system for ease of installation
- Create multi-radar and multi-station systems
