PT9 C-PROOF Underwater Locator Beacon (ULB), 30 days
PT9 C-PROOF Underwater Locator Beacon (ULB), 30 days
Novega
SKU:PT9 C-PROOF
Delivery status: On order
Couldn't load pickup availability
Prices in EUR. Worldwide delivery, also to vessels. Payment, delivery and returns →

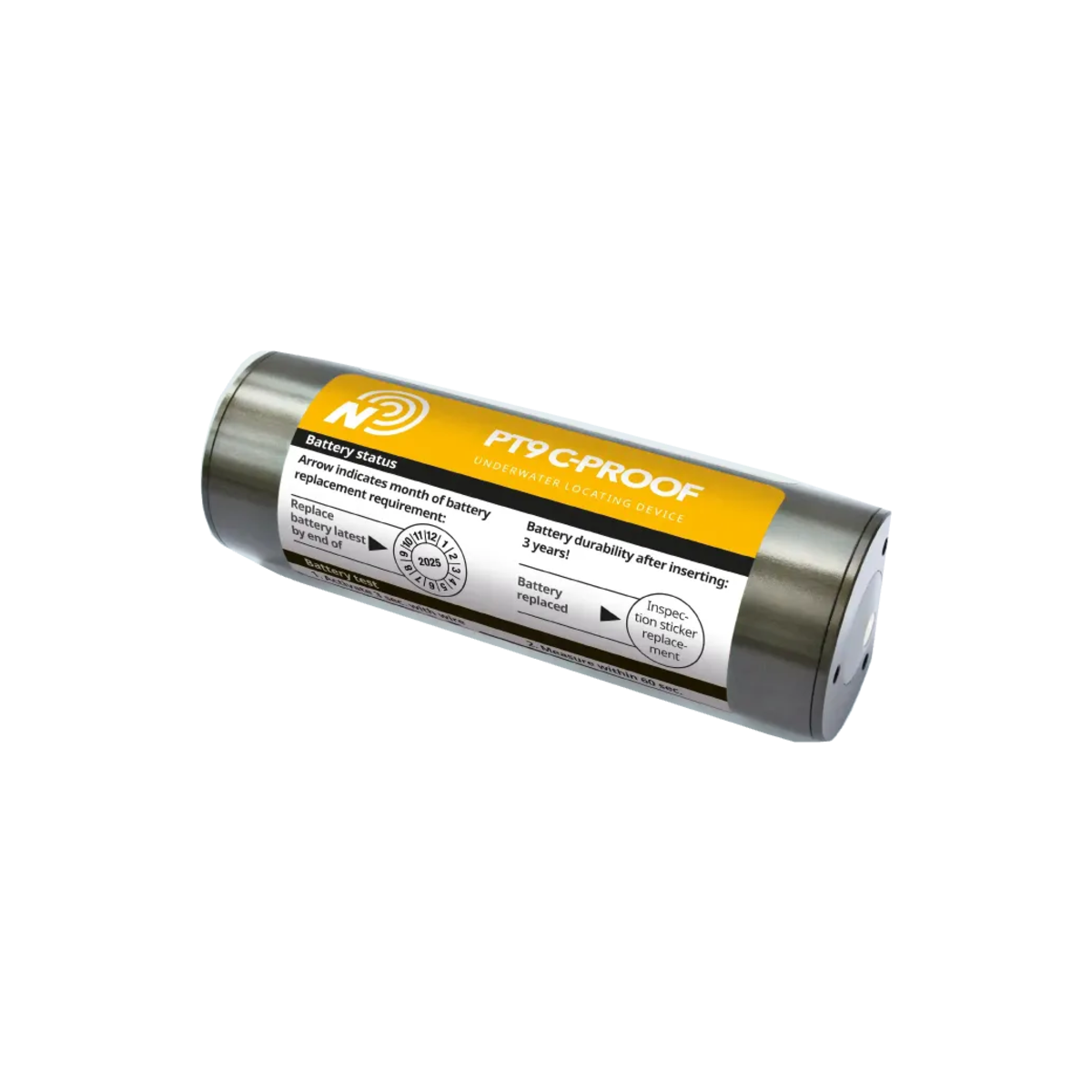

The PT9 C-PROOF is a 30-day underwater locator beacon (ULB) for the protective data capsule of a voyage data recorder (VDR / S-VDR). It is activated by water immersion and transmits a locating signal for at least 30 days.
The beacon has been on the market for almost two decades. It uses corrosion-protected components and coatings and a patented activation that blocks out rain, sea spray and condensation, so unwanted activations are reduced to a minimum.
- Description
The PT9 C-PROOF is a 30-day underwater locator beacon (ULB) for the protective data capsule of a voyage data recorder (VDR / S-VDR). It is activated by water immersion and transmits a locating signal for at least 30 days.
The beacon has been on the market for almost two decades. It uses corrosion-protected components and coatings and a patented activation that blocks out rain, sea spray and condensation, so unwanted activations are reduced to a minimum.
Share
Technical data
- Operating depth: surface to 6,096 m (20,000 ft)
- Operating temperature: -55 °C to +85 °C
- Operating frequency: 42 ± 1 kHz
- Operating life: minimum 30 days
- Shelf life: 3 years
- Length: 100 mm, diameter: 33 mm
- Weight: 173 g
- Power source: self-contained lithium metal battery, field replaceable, non-restricted for transport (UN3091/PI970)
Standards and approvals
- SAE AS8045
- IEC 60945 Ed. 4:2002
- BSH/46162/0010660/07
- RoHS and REACH compliant
- 30-day transmission for VDR and S-VDR capsules
- Patented activation – fewer unwanted activations, longer battery life
- Corrosion-protected components and coatings
- Field-replaceable Novega battery – see PT9 C-PROOF Battery Replacement Kit
