LT-4200 Satellite Communications System – Iridium Certus 200
LT-4200 Satellite Communications System – Iridium Certus 200
Lars Thrane
SKU:AC3200800
Delivery status: On order
Couldn't load pickup availability
Prices in EUR. Worldwide delivery, also to vessels. Payment, delivery and returns →
- Description
Share

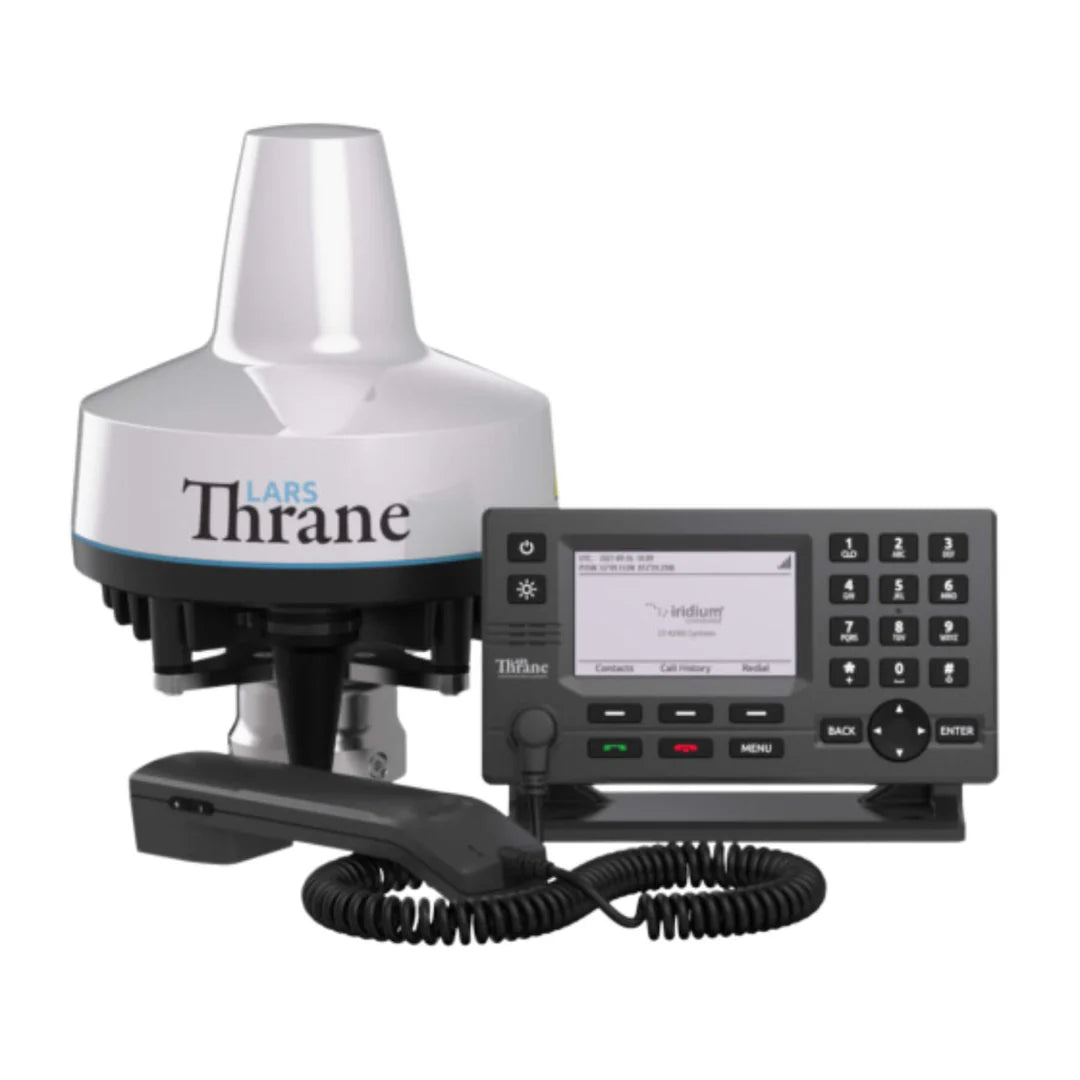

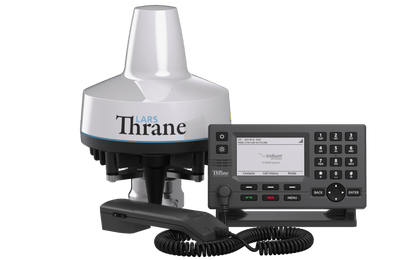

The LT-4200 system has voice and data capabilities with 100% global coverage provided by the Iridium® Certus network. The LT-4200 system consists of a control unit, antenna unit, handset, and cradle. A single coaxial cable connects the control unit with the antenna unit. Using a standard coaxial cable, up to 150 meters of separation between the units can be obtained, giving freedom to mount the antenna unit in the best possible location, with free line of sight to the satellites.
The LT-4200 system can be used as the primary satellite communication product on vessels, covering the basic communication needs in terms of connectivity (ship to ship / ship to shore). The LT-4200 system offers three high quality voice channels, and IP-data up to 176 kbps (up) / 176 kbps (down), making it the perfect satellite communication product on board any vessel.
The LT-4200 system is designed and built for the demanding and rough environment at sea and with an operational temperature range from -40⁰C to +55⁰C (-40⁰F to +131⁰F).
- LT-4200 Certus® 200 Maritime
- LT-4200L Certus® 200 LandMobile
- 3 x high quality voice channels
- Background IP: up to 176 kbps (up/down)
- Single antenna cable solution (up to 150 m)
- Support for external SIP PABX and SIP handsets (up to 8)
- POTS through Analogue Telephone Adaptors (ATA)
- High-performance GNSS/GPS receiver
- Ethernet LAN interface on control unit
- Large 4.3” TFT display supporting day and night modes
- Firewall and user authentication for high level of security
- Configuration of firewall, port forwarding, and remote access
- PPPoE/JSON protocol for external IP-data management
- Web server for configuration and maintenance
