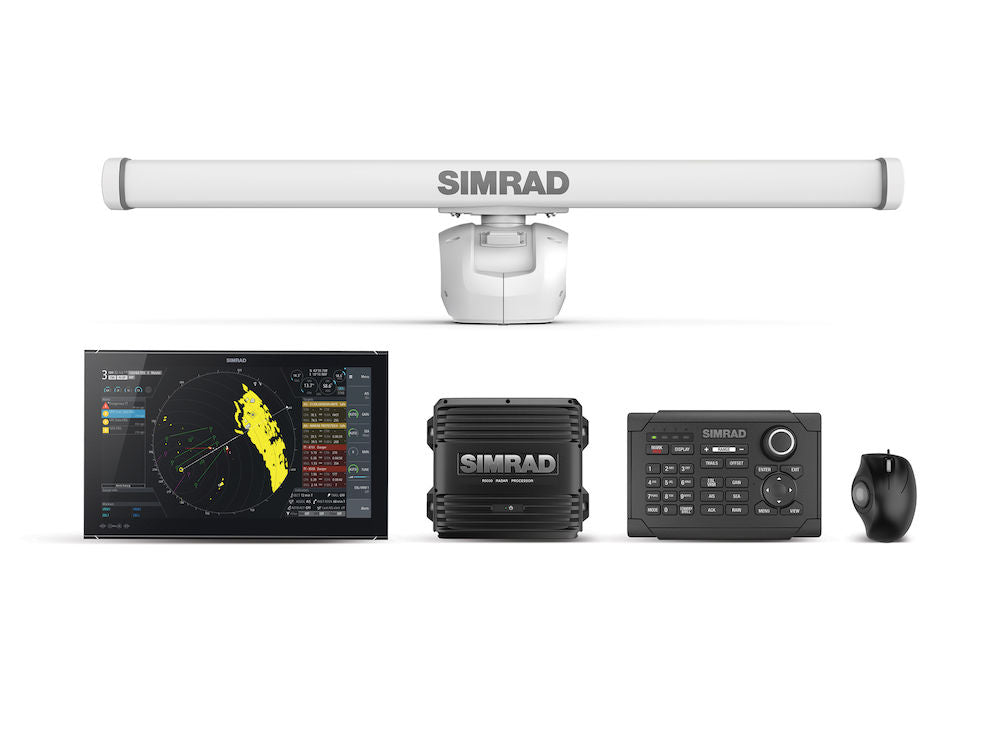

R5024 HALO5006 CAT2 RADAR W/30CAB
R5024 HALO5006 CAT2 RADAR W/30CAB
Simrad
SKU:000-16104-001
The HALO® 5000 radar is designed to provide superior situational awareness for commercial vessels, keeping users safe in even the harshest environments.
The 130W pulse compression solid-state radar boasts superb visibility in all conditions. Cutting-edge Target Tracking allows users to automatically monitor thousands of radar targets within a 24NM zone, displaying as many as 100 of those targets on-screen simultaneously.
With an adapted transmission pulse burst scheme, an Advanced Performance Monitor device, and advanced technical manuals, HALO® 5000 meets and exceeds IMO requirements.
- Description
The HALO® 5000 radar is designed to provide superior situational awareness for commercial vessels, keeping users safe in even the harshest environments.
The 130W pulse compression solid-state radar boasts superb visibility in all conditions. Cutting-edge Target Tracking allows users to automatically monitor thousands of radar targets within a 24NM zone, displaying as many as 100 of those targets on-screen simultaneously.
With an adapted transmission pulse burst scheme, an Advanced Performance Monitor device, and advanced technical manuals, HALO® 5000 meets and exceeds IMO requirements.
Product available
Status: On Order
Couldn't load pickup availability
Please note: Where product price is not shown, you can request for quote to receive information on availability and pricing. Product price will appear €0,00 in cart and checkout. A quote is non-binding.
Share
Lower Cost
As a solid-state radar sensor, HALO® 5000 boasts significantly lower cost of ownership than traditional magnetron radars. The state-of-the-art, compact design ensures reliability, availability, and serviceability of the HALO® 5000 throughout its lifespan, in all operating conditions.
The simplified connectors of the pre-wired thin power and ethernet cable contribute further to the easy, low-cost installation and future servicing.
Broad Compatibility
For the first time ever, the lightweight HALO® 5000 is available in both 4ft and 6ft antenna options, providing the choice of 22 or 44RPM speeds on either 24VDC or 230VAC power supply.
The radar’s modular design means it slots seamlessly into our existing R5000 system configuration. Employing an Antenna Park Hold, Halo® 5000 can either be assembled to form a standalone single radar system, or as part of an advanced networked multi-installation radar system, alongside additional X- and S-band SRT LAN radar sensors.
- 130W X-band Pulse Compression Radar Sensors
- Range up to 48NM
- Fully IMO/SOLAS Compliant
- Lightweight 4ft and 6ft Antenna Options
- Built-in Advanced Radar Performance Monitor
- Selectable 22 or 44 RPM Antenna Speeds
- 24VDC or 110-230 VAC 50Hz Power Supply
- High-Grade Gearbox for Wind Speed up to 100 knots
- Antenna Park Hold
