S2009, ECHOSOUNDER,9", NO TXDCR
S2009, ECHOSOUNDER,9", NO TXDCR
Simrad
SKU:000-12185-001
S2000 series displays feature a built-in echosounder module with CHIRP technology to deliver higher resolution, improved target separation, and greater image clarity than traditional sonar. Simrad technology makes CHIRP available not only for special-purpose CHIRP transducers, but also for traditional single-frequency transducers. This offers a cost-effective upgrade to CHIRP technology by installing an S2000 series fish finder for use with your existing transducer. Installation is simple thanks to a plug-and-play port for Simrad and Airmar transducers with blue seven-pin connectors, and a range of optional adapters to enable easy retrofit to other transducer types.
- Description
S2000 series displays feature a built-in echosounder module with CHIRP technology to deliver higher resolution, improved target separation, and greater image clarity than traditional sonar. Simrad technology makes CHIRP available not only for special-purpose CHIRP transducers, but also for traditional single-frequency transducers. This offers a cost-effective upgrade to CHIRP technology by installing an S2000 series fish finder for use with your existing transducer. Installation is simple thanks to a plug-and-play port for Simrad and Airmar transducers with blue seven-pin connectors, and a range of optional adapters to enable easy retrofit to other transducer types.
Product available
Status: On Order
Couldn't load pickup availability
Please note: Where product price is not shown, you can request for quote to receive information on availability and pricing. Product price will appear €0,00 in cart and checkout. A quote is non-binding.
Share

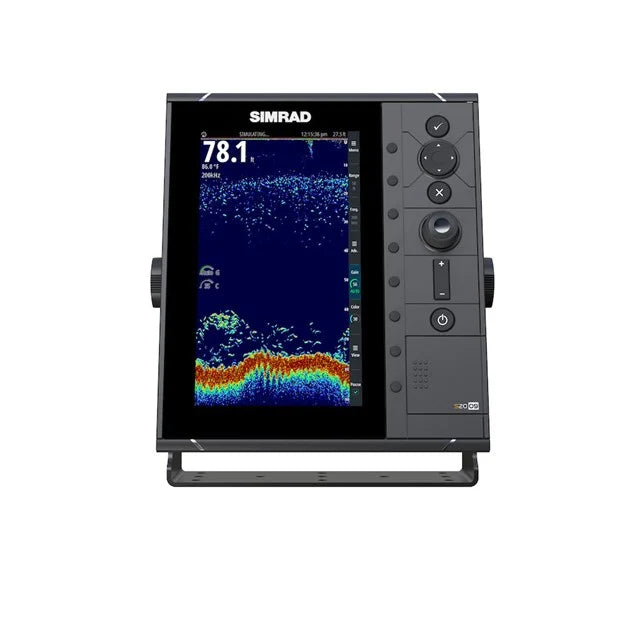

9-inch Portrait Display
The S2009 maximizes screen size where limited mounting space is available, with a compact 9-inch portrait display that’s perfect for centre consoles. Its vertical layout shows the water column with a high level of detail, making it easy to distinguish individual fish arches and other key features. Direct-access menu keys beside the display provide intuitive control of on-screen menu options, enabling one-button access to key settings and features. With reliable, long-life operation and clear tactile feedback, the S2009’s large buttons are suitable for use in rough seas, while travelling at speed, and with wet or gloved hands.
Networking & Expansion

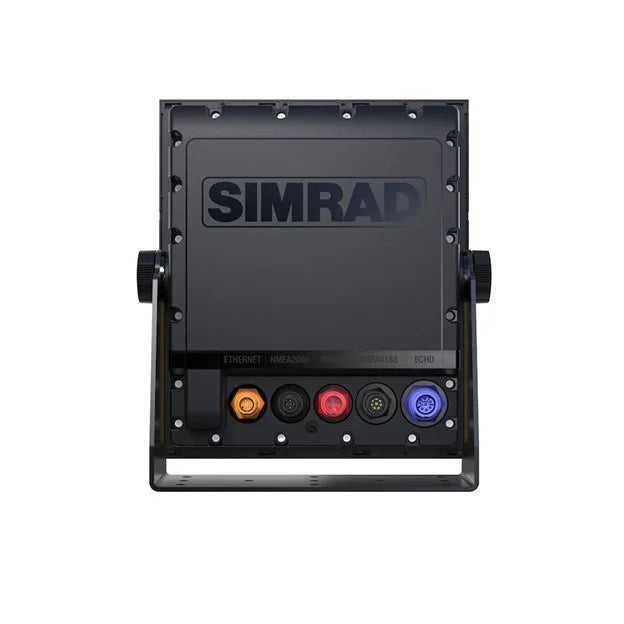

It’s easy to share sonar data with other Simrad displays over an Ethernet network. S2000 series fish finders can also be used as dedicated displays for the built-in sonar module on Ethernet-connected Simrad multifunction displays, freeing your main display for other purposes such as navigation or radar. Other devices can be integrated via NMEA 2000® and NMEA 0183® connectivity, enabling additional functionality such as marking a waypoint on your chartplotter straight from the fish finder’s history in order to revisit a promising spot.
- Integrated 9-inch portrait display
- High brightness ideal for outside installation
- High depth penetration and ping speed
- Simple operation with 8 direct-access menu keys
- Customise your view to highlight targets of interest
- Bracket or flush-mount installation (bracket included)
