IC-GM600 VHF/DSC Marine Radio
IC-GM600 VHF/DSC Marine Radio
ICOM
- Description
Product available
Average delivery time: 3-5 days
Please note: Where product price is not shown, you can request for quote to receive information on availability and pricing. Product price will appear €0,00 in cart and checkout. A quote is non-binding.
Share

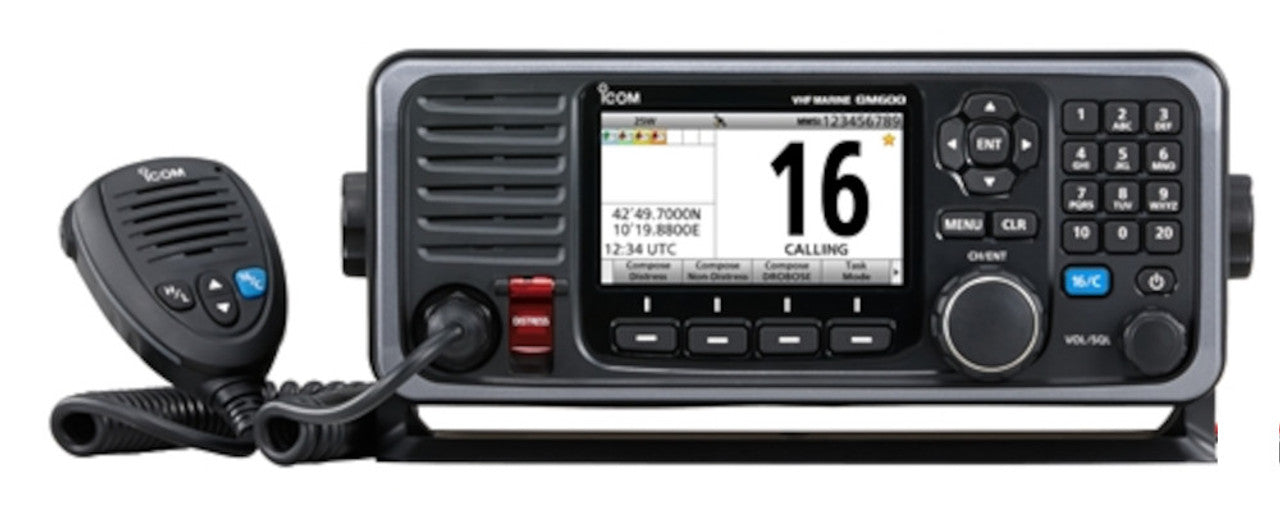

The GM600 VHF Transceiver is designed for Class A DSC operation and provides a complete GMDSS VHF communication system as required for Commercial SOLAS regulated vessels engaging in international voyages. The GM600 meets both the UK Marine Equipment Regulation (MER) “Red Ensign mark” as well as the Marine Equipment Directive (MED) 2014/90/EU “wheel mark” approval for European merchant ships. When installed with the GM800 MF/HF radio, GM600 and GM800 radios provide a complete GMDSS VHF, MF and HF radio station.
Meets UK MER “Red Ensign” and European MED “Wheel Mark” Requirements
The GM600 meets the UK Marine Equipment Regulation and the Marine Equipment Directive 2014/90/EU on European marine equipment requirements and has passed rigorous environmental testing and quality assurance process. The GM600 is designed to provide reliable operation and long-lasting durability under harsh maritime environments. The front panel has IPX7 protection (1 m depth of water for 30 minutes) and the rear panel has a corrosion resistance coating.
Meets ITU-R M.493-13 DSC
The built-in DSC provides automated distress and safety communication. The dedicated DSC watch-keeping receiver continuously monitors the DSC calling channel (CH70). A total of 100 MMSI numbers for DSC call (Individual ID: 75, Group: 25) can be stored with a 10-character ID name. Using the DSC Task mode feature provides straight-forward DSC operation.
4.3 inch Wide Viewing Angle Colour TFT LCD
The 4.3 inch colour TFT LCD provides almost 180 degree very wide viewing angle and displays high resolution characters and function icons. Even when the radio is installed to the instrument panel, the operator can clearly recognize the display information from various viewing angles. The night mode display ensures good readability in low light conditions.
Intuitive User Interface
A combination of directional keypad and soft keys provides simple operation. The main 12 functions are assigned to soft keys (at the bottom of the display) and toggled with the left and right keys. Clearly labelled keypad provides straightforward entry.
Provides Loud, Clear Audio
The GM600’s internal speaker enhances intelligibility of received calls. By adopting a new waterproof paper speaker cone, the speaker provides superior sound quality with a wide frequency range and a flat frequency response. In addition, the radio delivers powerful 10 W audio when connected to an external speaker.
DC-DC Converter PS-310
The PS-310 DC-DC converter supplies a stable 12.6 V of power to the GM600 from either a 12 V or 24 V power source (depending on version) and provides a floating ground connection. The PS-310 protects the radio from momentary power interruption. The PS-310 must be used with the GM600 for MER/MED certification compliance.
• GMDSS VHF transceiver with Class A DSC
• Meets ITU-R M.493-13 DSC
• Meets MED “Wheel Mark” Requirements
• 4.3 inch Wide Viewing Angle Colour TFT LCD
• Intuitive User Interface
• DC-DC Converter PS-310
• IEC 61162-1 interface for GNSS receiver
