SCX-21/POLE MTG./MIC
SCX-21/POLE MTG./MIC
Furuno
SKU:1063900040

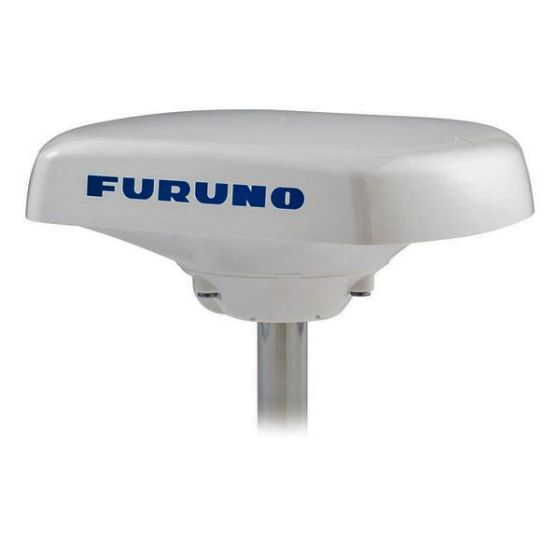

Revolutionary compact Satellite Compass, build-in four (4) antennas with six(6) baselines adding value to Fish finder for heave correction, Radar for smooth Echo Trail, Plotter and Instruments for 3-axis speed indication and autopilot for straight steering. SCX-21 for NMEA0183 including: 1 x SCX-21-P, satellite compass, 15 m cable FRU-CF-F15M and standard installation materials. NOTE: Pole mount kit included as standard. roof mount kit not supported; 12-24 V DC
- Description
Revolutionary compact Satellite Compass, build-in four (4) antennas with six(6) baselines adding value to Fish finder for heave correction, Radar for smooth Echo Trail, Plotter and Instruments for 3-axis speed indication and autopilot for straight steering. SCX-21 for NMEA0183 including: 1 x SCX-21-P, satellite compass, 15 m cable FRU-CF-F15M and standard installation materials. NOTE: Pole mount kit included as standard. roof mount kit not supported; 12-24 V DC
Product available
Status:
Couldn't load pickup availability
Please note: Where product price is not shown, you can request for quote to receive information on availability and pricing. Product price will appear €0,00 in cart and checkout. A quote is non-binding.
Share


Revolutionary compact Satellite Compass, build-in four (4) antennas with six(6) baselines adding value to Fish finder for heave correction, Radar for smooth Echo Trail, Plotter and Instruments for 3-axis speed indication and autopilot for straight steering.
- Frequency: 1575.42 MHz (GPS/Galileo/QZSS/SBAS), 1602.5625 MHz (GLONASS)
- Tracking code: C/A (GPS/QZSS/SBAS), E1B (Galileo), L1OF (GLONASS)
- Heading Accuracy: Heading/Roll/Pitch: 1.0° rms (static) 0.5° rms (dynamic)
- Follow-up: 45°/sec
- Settling time: 60 seconds approx.
- Position Accuracy: GPS: 5m approx. (2 drms, HDOP < 4), MSAS: 4m approx. (2 drms, HDOP < 4), WAAS: 3m approx. (2 drms, HDOP < 4)
- Temperature: -25°C to +55°C (storage: -30°C to 70°C)
- Waterproofing: IP56
- Power Supply: 12-24 VDC: 0.2-0.1
