SVS-200 SVDR with Fixed Capsule
SVS-200 SVDR with Fixed Capsule
SAL Navigation
SKU:88.38.03
- SVS-200 Main Unit
- RCU2 (Remote Control Unit)
- AMU (Audio Mixer Unit)
- USB Memory Stick (4GB)
- Ethernet connector – RJ45
- Microphone (AM2)
- Microphone Housing
- JB Ethernet Power

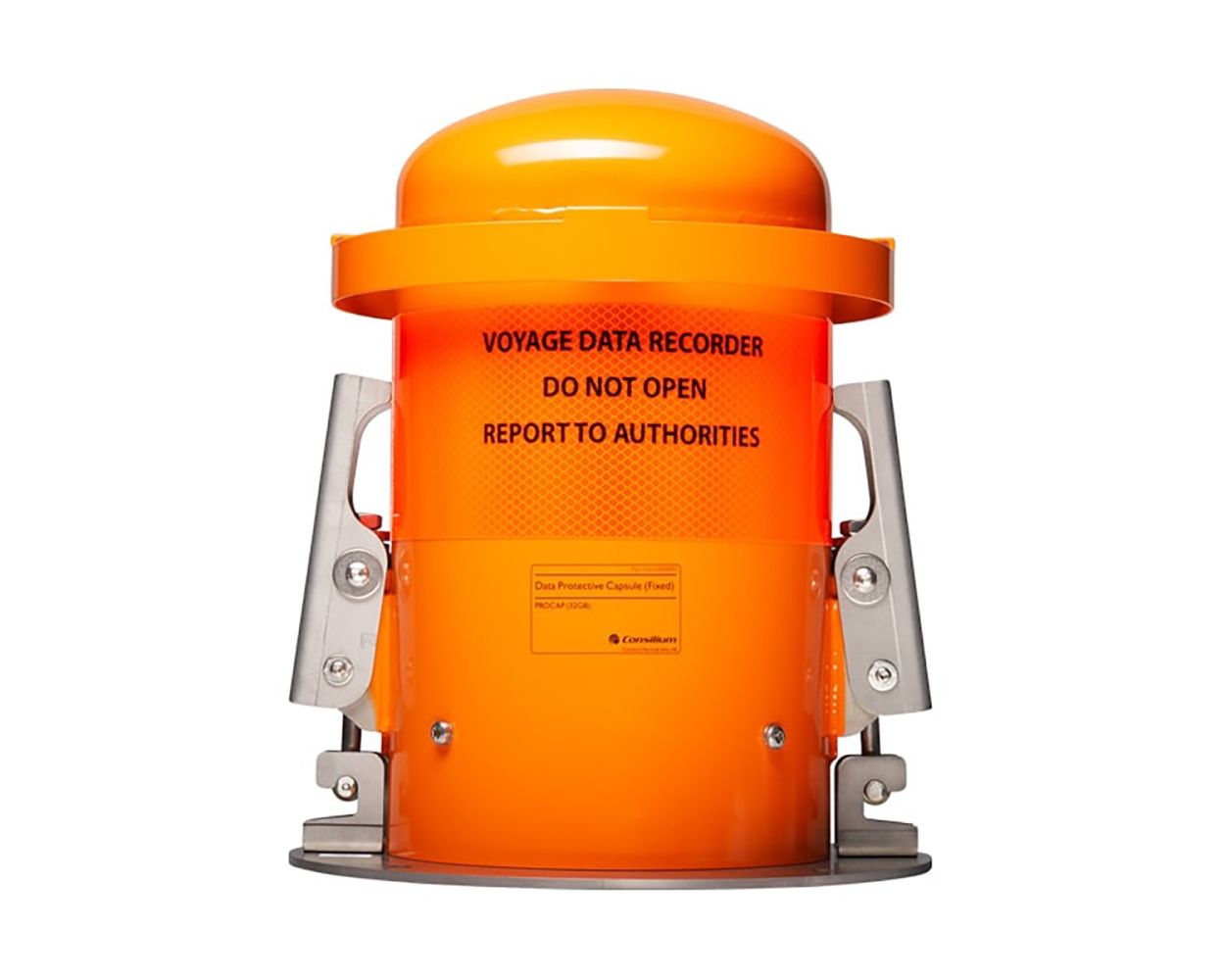

- ProCap 32 GB
- Beacon PT9 Ninety
- Description
- SVS-200 Main Unit
- RCU2 (Remote Control Unit)
- AMU (Audio Mixer Unit)
- USB Memory Stick (4GB)
- Ethernet connector – RJ45
- Microphone (AM2)
- Microphone Housing
- JB Ethernet Power
- ProCap 32 GB
- Beacon PT9 Ninety
Product available
Status: On Order
Couldn't load pickup availability
Please note: Where product price is not shown, you can request for quote to receive information on availability and pricing. Product price will appear €0,00 in cart and checkout. A quote is non-binding.
Share
SAL SVS-200 is designed to robustly and continuosly record all vital navigational instruments and alarm systems on any vessel. The most recent data is stored on a number of capsules and additional storage units.
Data is easily and securely extracted from the storage media and played back on specially designed playback software. Remote playback, voyage analysis and system diagnostics are also available to onshore users through SAL Cloud (optional).
So as to minimize installation time and cost, the system is modular and network-based. Modern Radar and ECDIS stations can be recorded over network, and for older stations (as well as for other screens) video grabber options are available, providing full fl exibility.
Modular and easy to install. With intuitive playback and remote diagnostics.
We provide several options for extracting and playing back voyage data, both on board and from shore via internet. Our playback software supports both PC and Mac, and through SAL Cloud the data can be securely accessed and played back directly in the web browser on any computer, tablet or smartphone.

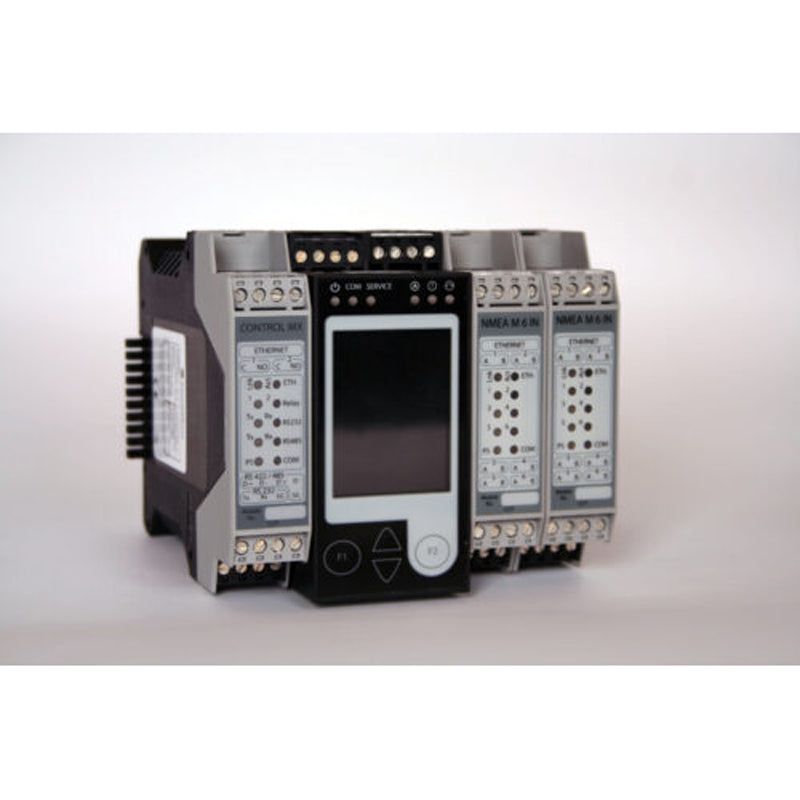

Modular and flexible system is easily adapted to the specific needs on each vessel, and parts are quickly replaced if necessary.
Recording period Capsules: min. 48 hours, Long Term Storage: min. 30 days. Battery backup Two hours of recording upon power failure. NMEA inputs 19 (standard), can be expanded. NMEA outputs 1
Video inputs 4+ (over network or with video grabber), 15 sec. interval. Audio inputs 8 microphones, 2 VHF(can be expanded). Digital inputs (optional) From 8 and up. Analogue inputs (optional) From 4 and up.
