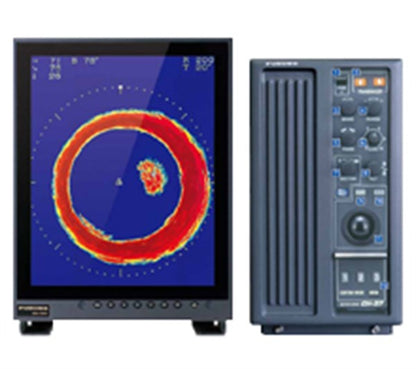

CH-37BB/162K/24V/SR Black box full circle sonar
CH-37BB/162K/24V/SR Black box full circle sonar
Furuno
SKU:1052638600
Black box full circle sonar with 3-D presentation, 162 kHz transmit freq. and 400 mm stroke, consisting of processor/control unit (CH-371-E),
- Description
Black box full circle sonar with 3-D presentation, 162 kHz transmit freq. and 400 mm stroke, consisting of processor/control unit (CH-371-E),
Product available
Status: On Order
Couldn't load pickup availability
Please note: Where product price is not shown, you can request for quote to receive information on availability and pricing. Product price will appear €0,00 in cart and checkout. A quote is non-binding.
Share
Black box full circle sonar with 3-D presentation, 162 kHz transmit freq. and 400 mm stroke, consisting of processor/control unit (CH-371-E), Transceiver Unit (CH-341-162), Raise/lower drive unit (CH3421-37-162-2), hull unit assembly parts (CH-3424-22-81), complete sounddome assy (CH-3422-162-22), 2.2 m sounddome shaft (SHJ-0006-2) and 5 m cable (06S4061-0) between transceiver unit and hull unit; 24 V DC.
NOTE: Retraction tank 1.8 m and inclinometer BS-704 and cable between processor/control unit and hull unit must be ordered separately!
- Full-circle, sector or vertical-fan scanning display modes
- Historical seabed image using unique 3D graphics processor
- Choice of 60, 113 or 162 kHz
- Normal or fast scanning
- 8 or 16 color presentation
- Displays ship's position, heading, intended course line, and water currents when interfaced with appropriate sensors
- One-touch selection of optimum sonar settings with user-programmable "custom" function keys
- The optional MS-100 motion sensor electronically stabilizes the sounding beam for up to 20 degree roll/pitch for a steady picture presentation.
- The dual mode for easy evaluation of distribution of fish school at vertical/horizontal planes
