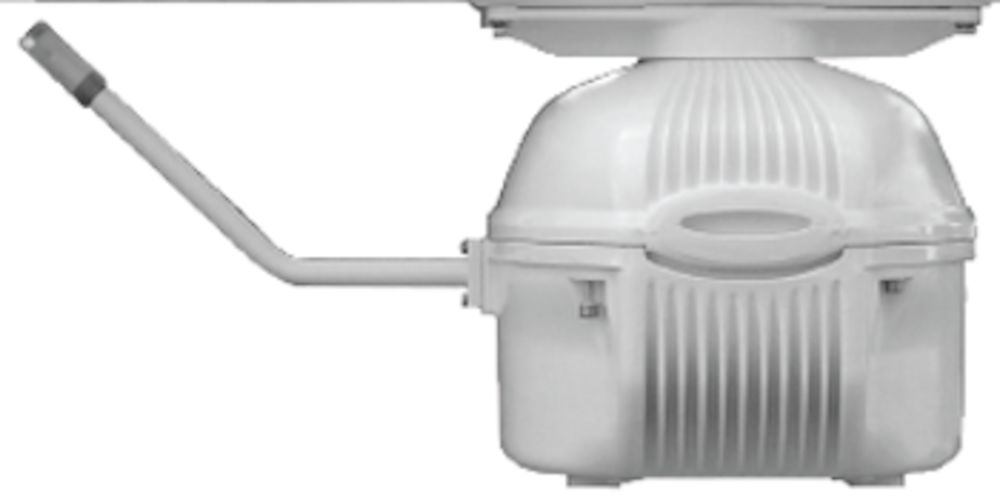

Simrad 25 KW X-BAND SRT UP-MAST HSC W/DOC
Simrad 25 KW X-BAND SRT UP-MAST HSC W/DOC
Simrad
SKU:000-10329-001
Tavahind
€10.952,00
Tavahind
€8.214,00
Müügihind
€10.952,00
Ühiku hind
/
per
25kW X-band up mast transceiver without antenna for HSC
- Description
25kW X-band up mast transceiver without antenna for HSC
Toode saadaval
Olek: On order
Järeletulemise saadavust ei saanud laadida
Pange tähele: kui toote hinda ei ole näidatud, saate saadavuse ja hindade kohta teabe saamiseks taotleda hinnapakkumist. Toote hind kuvatakse ostukorvis ja kassas 0,00 €. Hinnapakkumine ei ole siduv.
Jaga
- The new SRT family of radar Sensors has been designed in order to allow a direct coupling between the transceiver, the rotary joint
- and the antenna; the major advantages of this configuration are the simplified installation activities and the minimization of the RF losses
- in the path between antenna and transceiver, so increasing also the overall radar performances.
- The interface with the console employs a single connector ended cable that allows controlling and tuning of electronics remotely from the radar display, without
- necessity to open the external radar case.
- The Transceiver features new compact electronics with a high integration level derived from a well-tested design.
- - Modular and solid state construction
- - Electronic Modulator based on MOSFET technology;
- - Long life 3rd/4th generation magnetron (25 kW)
- - Low Noise Amplifier providing a reduced overall Noise Figure (4.0 dB nominal)
- - Microcomputer controlled operations
- - Serial link with telemetry and remote control for adjustments
- - Built-in test facilities for power supply and modulator parameters
- - PRF jittering removing any possible ambiguity due to multiple-time-around echoes
- - Two different Blanking Sectors to be set at time of installation
- - Performance Monitor
- - Rotation: HSC 40 RPM
